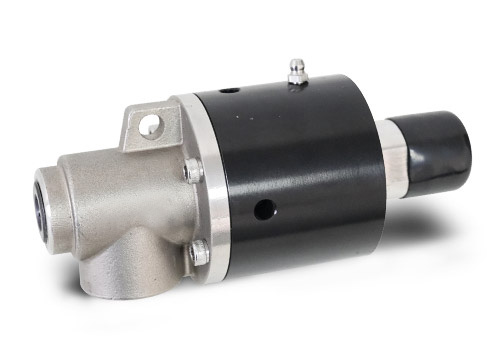

What Is a Rotary Joint?
A rotary joint, also known as a rotary union, are critical mechanical components designed to facilitate the seamless transfer of various fluids—such as steam, water, thermal oil, air, or chemicals—between stationary and rotating parts. These devices play a vital role in industrial settings, where continuous fluid supply is essential for the operation of rotating equipment like drums, rollers, spindles, and conveyor belts. Rotary joints are commonly employed in applications requiring pressurized fluids or specific temperature conditions, ensuring smooth, uninterrupted fluid flow even under demanding environments while maintaining high reliability.
Whether for cooling, lubrication, heating, or fluid-driven motion, rotary joints are indispensable components across manufacturing, automotive, aerospace, and paper industries. Their capability to handle diverse media types and operate efficiently under varying pressures and temperatures makes them essential elements in modern industrial machinery.
How Rotary Joints Work? The Sealing Principle
A rotary joint might seem like a simple connector, but its internal operation is a marvel of precision engineering, designed to maintain a perfect seal under demanding conditions. The core function of a rotary joint is to maintain a secure and leak-free connection while enabling rotation. It typically consists of a housing, a rotating shaft or rotor, and a sealing mechanism. The seal must withstand pressure, temperature, and continuous friction while keeping the fluid contained within the system.
Modern rotary joints use various types of seals such as carbon, ceramic, or mechanical seals to ensure durability and long service life. Some joints are designed for single media (such as steam only), while others are multi-channel types capable of handling different fluids simultaneously without mixing.
Key Components Breakdown
Every rotary joint consists of four critical parts working in harmony:
- Housing (Stationary Body): The outer shell that connects to the stationary supply line (e.g., a pipe).
- Rotator (Spindle): The inner core that rotates with the machinery (e.g., a drum or roll) and delivers the media.
- Seals: The heart of the joint. These are precision-engineered components (often mechanical face seals or graphite rings) that create a tight, low-friction barrier between the stationary housing and the rotating spindle, preventing leaks.
- Bearings: High-quality bearings support the rotator, allowing it to spin smoothly and consistently under load, while maintaining the precise alignment of the seals.
The Step-by-Step Process
The process of transferring media is continuous and seamless:
- Entry: The fluid or gas (e.g., steam, water, hot oil) enters the joint through the stationary inlet port.
- Sealing: The media is contained within a chamber formed by the precise mating of the stationary and rotating seals. This interface allows rotation while maintaining pressure.
- Rotation: The media flows through the rotator, which is turning effortlessly thanks to the bearing assembly.
- Exit: The media exits the joint through the rotating outlet port, ready to perform its function (heating, cooling, hydraulics) in the moving part of the machine.
Common Industrial Applications
Rotary joints are essential in a variety of industries:
- Paper manufacturing: To transfer steam or thermal oil to heated rollers.
- Steel & metallurgy: In continuous casting and rolling equipment.
- Textile machinery: For temperature control using thermal oil.
- Chemical processing: For transferring corrosive or high-pressure fluids.
- Printing & packaging: In drying systems and rotary cylinders.
Xiandai rotary union are engineered to meet the specific demands of each industry, with custom configurations available for extreme pressure, temperature, and rotational speed.
Types of Rotary Joints for Different Applications
Choosing the right rotary joint is critical. They are specialized components designed for specific media, pressures, and temperatures.
By Media Type
- Steam Rotary Joints: Built to handle high temperatures and pressures, often featuring advanced sealing materials like carbon graphite to prevent scaling and wear.
- Hydraulic Rotary Swivel Joints: Engineered for extremely high system pressures (often thousands of psi). They are robust, typically made from hardened steel, and use seals designed for hydraulic fluid.
- Water/Coolant Rotary Joints: Commonly used for cooling applications in machine tool spindles, plastic injection molding, and printing presses. They often prioritize corrosion resistance (e.g., brass or stainless steel bodies).
- Thermal Oil Rotary Joints: Designed for high-temperature heat transfer applications where steam is not suitable, using specialized seals for thermal oils.
By Design and Flow
- Single Flow Rotary Joints: The most basic type, designed for the transfer of a single media in one direction.
- Dual-Flow Rotary Joints: Feature two independent flow paths. These can be co-flow (both media flowing in the same direction) or counter-flow (media flowing in opposite directions), common in cooling circuits.
- Multi-Passage Rotary Unions: Act as centralized utility stations for complex machinery like robots, transferring multiple media (e.g., water, air, electrical signals, hydraulics) through a single, rotating unit.
Why High-Quality Rotary Joints Matter
Low-quality or poorly matched rotary joints can lead to:
- Leaks and energy loss
- Equipment damage
- Downtime and maintenance costs
Xiandai’s rotary joints are built with precision and tested under real working conditions. With advanced CNC machining and proprietary sealing technology, we ensure maximum reliability and efficiency for every unit.
How to Choose the Right Rotary Joint: A 5-Step Guide
Selecting the correct joint ensures optimal performance and longevity. Follow this guide:
1. Identify Your Media
What are you transferring? The chemical composition of your media (water, steam, oil, abrasive slurry) determines the best seal and body material to ensure compatibility and prevent degradation.
2. Determine Operating Parameters
Gather your system’s exact specifications:
- Pressure (PSI/Bar): Maximum operating pressure.
- Temperature (°F/°C): Maximum operating temperature.
- Speed (RPM): The rotational speed of the equipment.
Exceeding any of these limits will lead to premature joint failure.
3. Choose Connection Types
Match the joint’s ports to your existing piping. Common types include:
- NPT (National Pipe Tapered): Common in North America.
- BSPP (British Standard Pipe Parallel): Common in Europe and Asia.
- SAE Flange: Bolted connections for high-pressure hydraulic systems.
- UNF/ORFS: Other common hydraulic thread standards.
4. Consider Your Application
The machinery you’re using dictates the joint’s design.
- Paper Manufacturing: Large drum dryers often use high-temperature steam joints.
- Rubber & Plastics: Calender rolls and extruders require precise temperature control via thermal oil or water joints.
- Machine Tools: CNC machining centers use coolant joints for spindle cooling.
- Mobile Equipment: Excavators and grapples use robust hydraulic rotary swivel joints.
5. Material Compatibility
- Brass: Cost-effective, good for water and low-pressure air.
- Carbon Steel: High strength, good for high-pressure hydraulics.
- Stainless Steel: Excellent corrosion resistance for harsh environments, food grade applications, or certain chemicals.
Troubleshooting Common Rotary Joint Problems
Even the best joints require maintenance. Here’s how to diagnose common issues.
Leakage: The #1 Issue
- Symptom: Fluid is visibly leaking from the vent hole or around the body.
- Possible Causes:
- Worn Seals: The most common cause. Seals degrade over time from normal wear, heat, and friction.
- Bearing Failure: Worn bearings cause the rotator to wobble, breaking the seal’s alignment.
- Over-Pressure: System pressure spikes can damage seals instantly.
- Solutions: Inspect and replace seals using a repair kit. For bearing issues or over-pressure damage, the joint may need to be rebuilt or replaced.
Reduced Rotation or Binding
- Symptom: The joint is hard to turn, feels gritty, or has seized completely.
- Possible Causes:
- Lack of Lubrication: Some joints require periodic lubrication.
- Internal Corrosion: Contaminated media can corrode internal components.
- Foreign Object Damage: Debris in the system can score surfaces and jam the mechanism.
Excessive Vibration or Noise
- Symptom: The joint vibrates excessively or makes grinding, rumbling noises.
- Possible Causes: Almost always points to damaged bearings or severe misalignment during installation.
Xiandai’s Solutions
Shandong Xiandai Sealing Technology offers:
- High-speed and high-temperature rotary joints
- Multi-passage rotary unions
- Custom rotary joint solutions for specialized applications
- Technical support and product matching guidance
Whether you are upgrading existing equipment or developing a new system, our team can recommend the right rotary joint for your needs.
Conclusion
In summary, rotary joints are far more than simple connectors; they are precision-engineered components critical to the smooth, efficient, and reliable operation of countless industrial machines. From their fundamental operating principle—connecting static and dynamic systems using precision seals and bearings—to the wide variety of joint types designed for specific media like steam, hydraulics, and coolants, selecting the right rotary joint is a decision that directly impacts productivity and downtime.
Understanding key selection criteria—medium, pressure, temperature, speed, and connection type—is essential for achieving optimal performance. Similarly, recognizing common failure modes like leakage and sticking enables effective troubleshooting and proactive maintenance planning. Ultimately, investing in the right high-quality rotary joint and maintaining it properly means investing in minimizing unplanned downtime, reducing energy waste, and maximizing equipment output.
FAQ
Can a leaking rotary joint be repaired, or must it be replaced?
Most high-quality rotary joints are designed to be repaired, not just replaced. By using an OEM-specific seal repair kit, you can often restore the joint to like-new performance at a fraction of the cost of a new unit. This is a key advantage of investing in quality components.
What is the difference between a rotary joint and a rotary union?
In practice, these terms are used interchangeably across most industries. There is no fundamental technical difference. “Rotary joint” is perhaps more common, but both refer to the same device.
How long does a rotary joint typically last?
There is no single answer, as lifespan depends entirely on the operating conditions (pressure, temperature, speed, media) and maintenance. A joint in a well-maintained, moderate application can last for years, while one in a harsh, abrasive environment may have a shorter service life. Regular inspection is key.
